Loupedeck Image Devices

PreviousSaitek FIP: Driver & Function CheckNextMidi Devices

Last updated 16 days ago

Was this helpful?

Loupedeck Software 6.0.3 required

No later version of Loupedeck Software is supported

The Loupedeck Software 6.0.3 Installer can be found

Logitech Options+ must not be installed

  • Exit SPAD.neXt

  • Install SPAD Loupedeck plugin. You will find it in the GamePlugins-folder of SPAD.neXt installation folder

  • Restart Loupedeck app

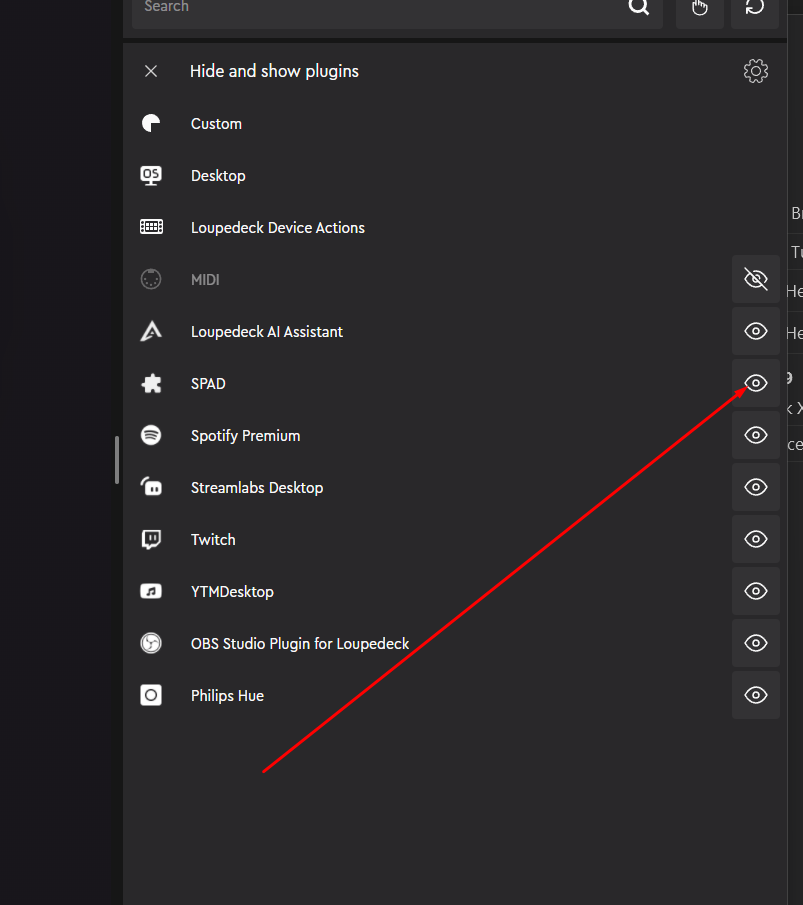

  • In Loupedeck Software unhide the SPAD plugin

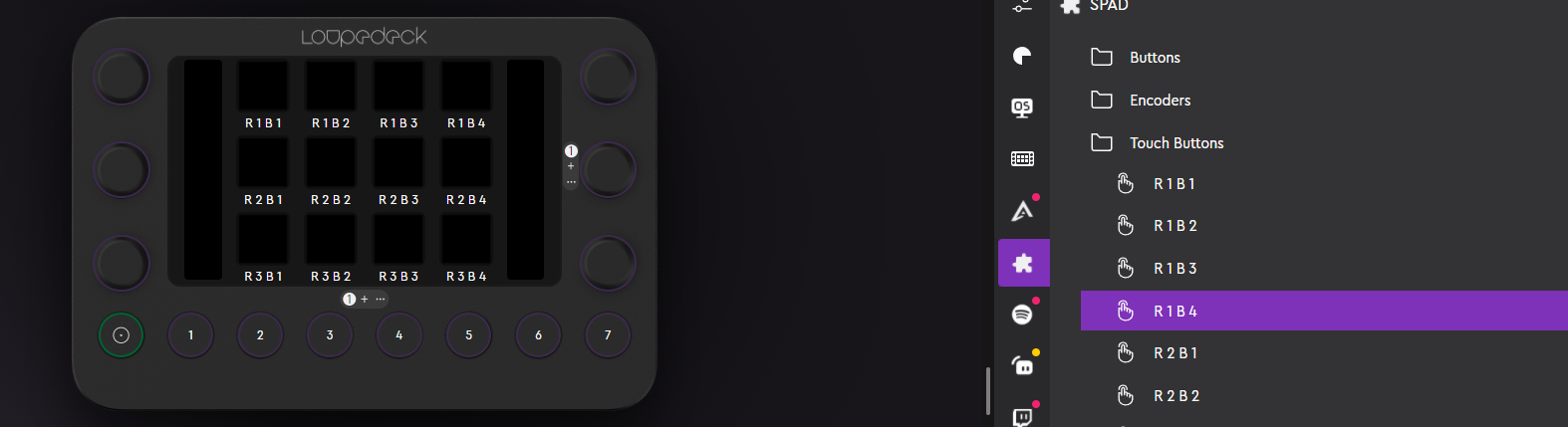

  • Create a new Loupedeck Profile and drag the Spad-Actions onto the buttons

  • Buttons should show the Buttonnames on them now on device

  • Start SPAD.neXt , make sure WebApi is enabled. (You can check by opening , it should show some api page)

  • After about 15secs the Loupedeck should show in Panels , and all buttons on device should go blank. (You might also want to enable the "Wait" option in Settings->Devices->Remote Devices)

  • if everything fails, open a ticket and attach

    %LOCALAPPDATA%\Logi\LogiPluginService\Logs\plugin_logs\SPAD.log
here
http://127.0.0.1:28001/
